Inventory / Slimming Service
Outline

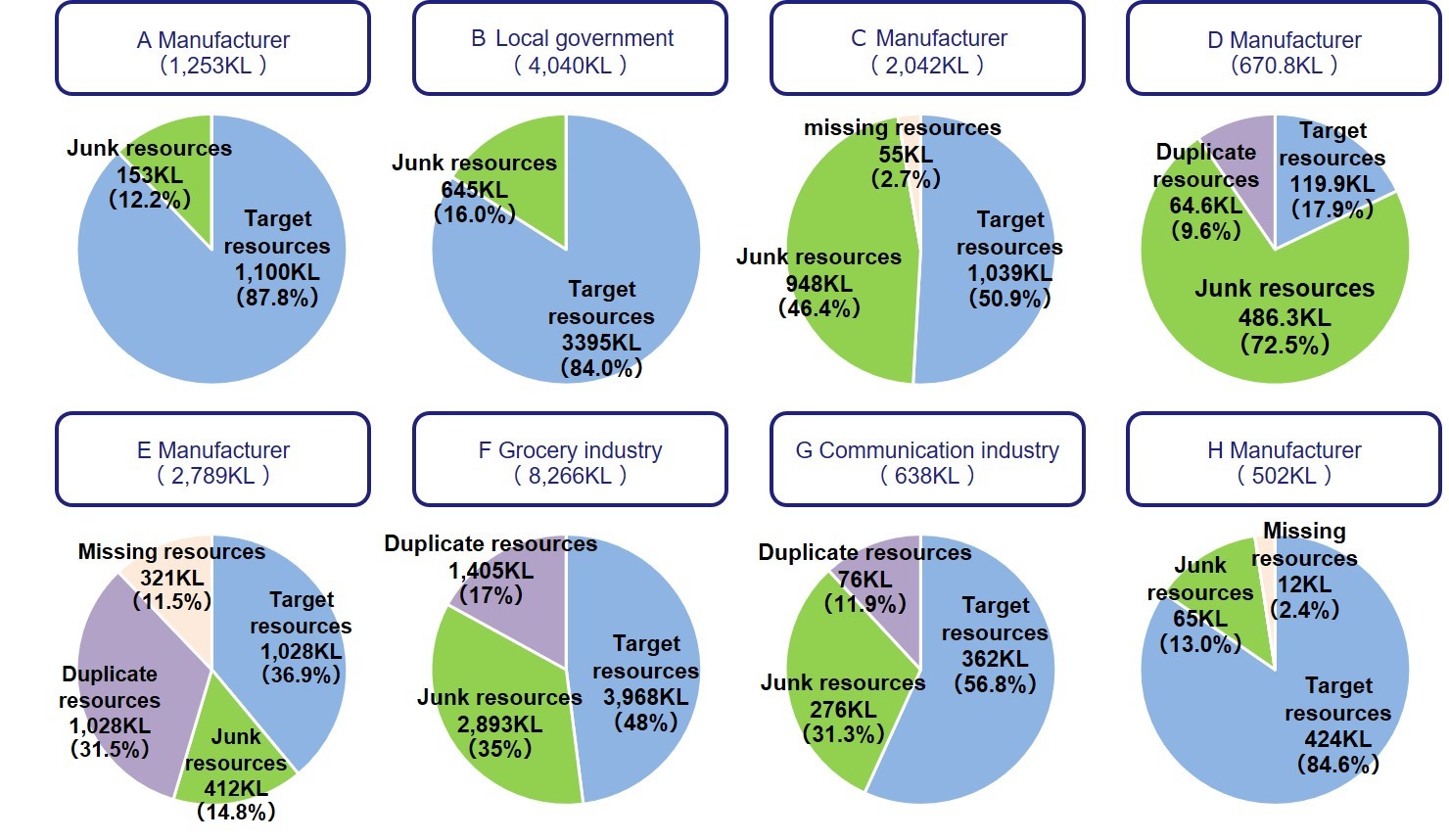

Cases of our Inventory & Slimming

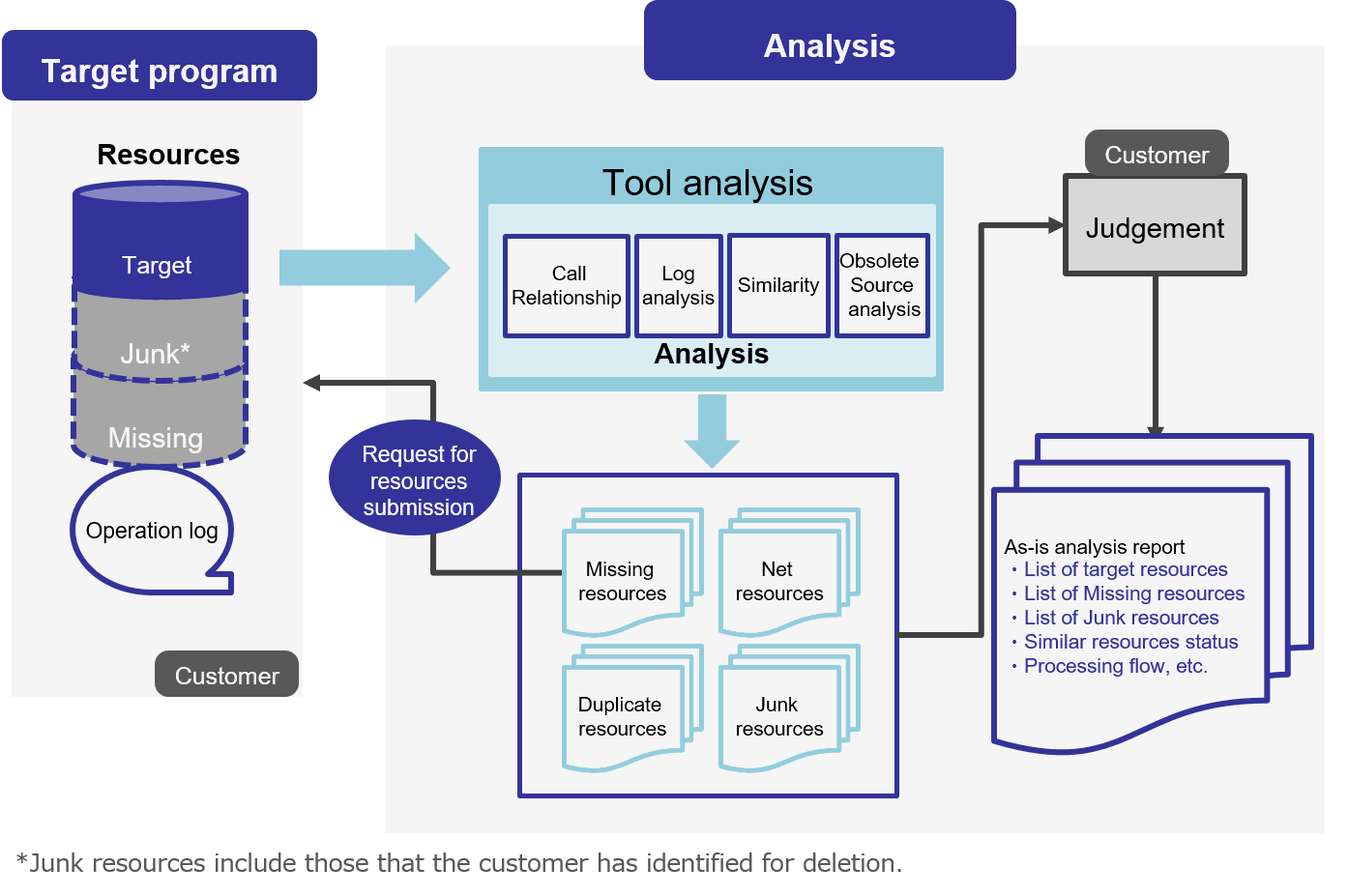

By reducing junk resources, checking for missing resources, identifying Target resources, creating processing flows, CRUD diagrams, etc., the system can be visualized and steadily prepared for updating.

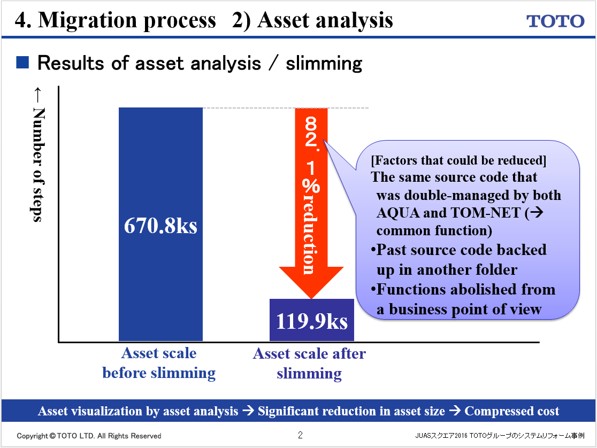

Excerpt from a customer presentation document
TOTO
Source :JUAS Square 2016
Report list
⟺ スクロールできます| Category | Deliverable name | Remarks |
|---|---|---|
| Inventory standards | – | Show the criteria for Inventory analysis. |
|
Results of Inventory analysis |
||
|
Inventory resources summary
|
||
|
Inventory result summary
|
||
|
List of resources to be analyzed
|
Clarify unnecessary, duplicate, target resources, log output status, etc. for all resources subject to Inventory.
|
|
|
List of missing resources
|
・Those that are called by job controller, programs, etc, but do not exist in the resources you provided
・Although some programs may be called due to missing resources, they are not on the list because they cannot be analyzed. |
|
|
List of resources not subject to analysis
|
Resources provided by customer that don’t need to be analyzed, because of resource types, etc.
|
|
|
Summary of similarity analysis results
|
||
|
Similarity list
|
||
|
Process flow (optional)
|
Online: Screen transition diagram
batch: job flow |
|
|
CRUD diagram (optional)
|
For FILE, DB access
|
|
|
Program hierarchy diagram (optional)
|
